iDS/iNS ACCESSIBLE PEDESTRIAN SIGNAL

Transportation networks should be safe and accessible to everyone. With Polara’s industry-leading APS, they can be.

Close-up detail of a Polara iDS accessible pedestrian signal. The signal has a yellow housing and a black button with a silver arrow.

Choose your model:

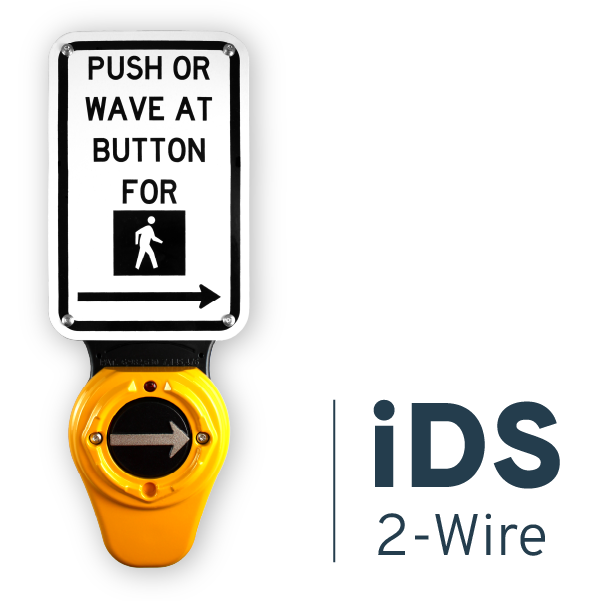

iDS

The iDS model, built on the iNS platform, provides touchless iDetect activation with inconspicuous, weather-proof radar and an adjustable detection range of 1-20 inches.

iNS

Our industry-leading APS provides audible indications (tone and/or speech message) to blind and visually impaired pedestrians with the push of a button.

ADA compliant
PROWAG
MUTCD compliant
Buy America compliant
ISO 9001:2015 certified

Features

Touchless actuation option

New iDS (iDetect) model provides touchless actuation with inconspicuous, weather-proof radar and an adjustable detection range of 1-20 inches.

Two- and three-wire installation

Two distinct models allow cities to easily upgrade both pre-timed and pedestrian actuated crosswalks to Accessible Pedestrian Signals (APS) without additional wires or wifi units.

Intuitive wireless programming

System settings, speech messages, and firmware updates can all be accessed and changed with the Polara Field Service App.

Rugged “Hall effect” button

The iDS/iNS features a rugged housing and ultra-durable Hall-effect switch that’s rated to more than 20 million operations.

Two pedestrian signal lights in New York City.

Compatible with PedApp

Allows pedestrians to access audible information and remotely actuate push buttons from their smartphone.

Remote monitoring

Take advantage of third-party SNMP software to monitor the status of your iDS/iNS from any internet-connected device.

Bluetooth logo

Bluetooth 5 connectivity

Button-to-button Bluetooth sync eliminates the need for external radios and trenching, with the added benefit of increased speed and range.

Extended button press

Customizable extended push settings allow pedestrians to access additional features like volume, direction of travel message, and more.

Multi-directional, customizable sound

Modular speaker emits sound from the front and back, with a variety of audio clips to choose from for walk, clearance, and don’t walk phases.

Compatible with preemption

The iDS/iNS is the only APS on the US market compatible with all major emergency vehicle, rail, and transit preemption services.

See our APS in action

Watch how Nicole in San Francisco, CA uses her city’s newly-installed APS to get from point A to point B safely and confidently.

I

2- versus 3-wire: What’s the difference?

Polara’s APS comes in four models. The iDS2 and iNS2 are able to operate in either 2 or 3-wire installations; the iDS3 and iNS3 can only be used in 3-wire installations.

2-wire operation

  • Operates over pre-existing 2-conductor button wires
  • Connects to a control unit in the cabinet
  • Great for upgrading existing call buttons to APS without running new wires
  • Provides maximum features and performance
  • Up to 16 buttons on up to 8 phases per intersection can be synchronized

3-wire operation

  • Operates over a 3-conductor cable run up to the signal head
  • Connects to a control unit in the signal head
  • Great for upgrading intersections without existing button wires, or for adding APS without adding any controller to the cabinet
  • Can be used with button wires for call activation
  • Stand-alone system – nothing needed in the cabinet
  • Secure wireless button synchronization via Bluetooth allows connection to existing 2-wire APS to avoid costly trenching

Resources

If you are searching for software associated with IDS/INS, kindly explore our software page.

Shelf-mount-control-unit-min-300x300

iCCU-S2 Shelf Mount Control Unit

The part number for ordering is iCCU-S2.

This iCCU-S2 central control unit is a universal control unit that can be used in any style traffic cabinet and replaces the iCCU-S. It is backwards compatible with the iCCU-S with just cable changes.

iCCU-C2 Card Rack/300 Series Control Unit

iCCU-C2 Card Rack/300 Series Control Unit

The part number for ordering is iCCU-C2.

This control unit is designed for use in 300 Series type Traffic Cabinets. It plugs into the detector rack and takes up two slots.

iPHCU3S Ped Head Control Unit for 3-Wire System

iPHCU3S Ped Head Control Unit for 3-Wire System

The part number for ordering is iPHCU3S



This is the Control Unit that mounts in the Pedestrian Signal Head (Ped Head), takes power from the 120 VAC power to the walk/don't walk light signals, and operates the Push Button Station via 3 wires that connect the Control Unit to the Push Button Station.

Polara PC App Dongle

PC App Dongle

The part number for ordering is iN-DGL

This Dongle is required for using a personal computer along with Polara's free PC APP to communicate with an iNS push button station or an iCCU. Your personal computer must have Windows 7 or higher. Download the cutsheet

iNS Set Up Box

iNS Set Up Box

The part number for ordering is iNS-SUB.

This Set Up Box is for powering an iNS3, or an iNS2 (as a 3 Wire), and also earlier iN Series (iN3 & iN2 as a 3 Wire) push button stations in 3 Wire Mode so they can be set up or programmed in the shop or at ones desk without being connected to a traffic cabinet or PED head. Download the cutsheet

iCCU-S2 Interconnect Board

iCCU-S2 Interconnect Board

The part number for ordering is iN2-ICB.

This Interconnect Board is required for landing of intersection/field button wires when an iCCU-S2 Control Unit is used.Download the cutsheet

iCCU-C2 Interconnect Board

iCCU-C2 Interconnect Board

The part number for ordering the interconnect board is iN2-ICB-C.

This Interconnect Board and Power Supply (purchased separately, PN: iN2-150WPS-C) is required for landing of intersection/field button wires when an iCCU-C2 Control Unit is used. The Power Supply connects to the Interconnect Board and provides the necessary additional power to operate the push button stations.Dowload the cutsheet

iCCU-S2 Hardware Kit for Cable Strain Relief

iCCU-S2 Hardware Kit for Cable Strain Relief

The part number for ordering is HK-035.

Provides strain relief for iCCU-S2 Cable(s), or if using 50PINADP adapter cable. Download the cutsheet

iCCU-S2 50 Pin 4-Cable Harness mating Adapter

iCCU-S2 50 Pin 4-Cable Harness mating Adapter

The part number for ordering is 50PINADP.

This adapter plugs into the 50-Pin cable harness from an iCCU-S and makes the same connections via the Cable A & C terminal location on iCCU-S2, allowing for a quick swap out of an iCCU-S to an iCCU-S2 without having to redo any of the wiring (if using just Cables 2 & 4). Download the cutsheet

iCCU-S2 Any Cabinet Cable Package

iCCU-S2 Any Cabinet Cable Package

The part number for ordering is ACCP.

This cable package supplies you with the cables and interconnect board needed to install an iCCU-S2 controller in any style cabinet. This style of installation requires each cable wire to be terminated to a screw terminal location in the cabinet. Download the cutsheet

iCCU-S2 SDLC Cabinet Cable Package

iCCU-S2 SDLC Cabinet Cable Package

The part number for ordering is SDLCCP.

This cable package provides what is needed to install an iCCU-S2 as a full BIU installation, or a Hybrid SDLC installation. It includes Polara’s SDLC Y cable. Download the cutsheet

iCCU to ped head load switch connector cable

iCCU to Ped Head Load Switch Connector Cable

The part number for ordering this nine wire cable is CABLE-A.

This is a nine wire cable that connects the iCCU to the ped head load switches in a traffic cabinet to receive ped interval timing. Download the cutsheet

iCCU to EV/PR Connector Cable

iCCU to EV/PR Connector Cable

The part number for ordering this six wire cable is CABLE-B.

This is a six wire cable that connects the iCCU to the emergency vehichle preemption (EV/PR) inputs in a traffic cabinet. Download the cutsheet

iCCU to Logc Ground Connector Cable

iCCU to Logic Ground Connector Cable

The part number for ordering this six wire cable is CABLE-C.

This is a six wire cable that connects the iCCU to the ped inputs and logc ground in a traffic cabinet to place ped calls to the controller. Download the cutsheet

iCCU General Input Cable

iCCU General Purpose Input Cable

The part number for ordering this four wire cable is CABLE-D.

This is a four wire cable that connects to the iCCU and allows general purpose (GP) inputs to be received by the iCCU-S2 by connecting to outputs from the traffic cabinet controller. Download the cutsheet

BTN-PLC Cable

iCCU-S2 PLC to iN2-ICB Connector Cable

The part number for ordering is BTN-PLC-CABLE.

This is a two wire cable that supplies power and data to the iNavigator buttons in the field. Connects to iCCU-S2 Buttlon PLC location and the other end connects to the iN2-ICB (Interconnect Board). Download the cutsheet

iCCU-S2 Cable for Logic Ground (BIU Use)

iCCU-S2 Cable for Logic Ground (BIU Use)

The part number for ordering is CABLE-C-LG.

This is used when the iCCU-S2 is used as a full BIU device on the SDLC Bus. This cable has a discrete single white wire that must be connected to the cabinet's logic/signal ground (LOGIC GND. One of these cables ships with every iCCU-S2. Download the cutsheet

iCCU-S2 Standard SDLC Cable

iCCU-S2 Standard SDLC Cable

The part number for ordering is iN2-SDLC-CABLE.

This cable is a standard 6' long SDLC cable used with the iCCU-S2 when SDLC is used. Download the cutsheet

SDLC Y Cable

SDLC "Y" Cable

The part number for ordering is iN2-SDLC-YCABLE.

This is a custom SDLC cable for use when there are no extra/available SDLC connection points in an intersection traffic cabinet. It allows our Control Units to be able to tap into an existing SDLC connection.

iCCU-C2 150 Watt Power Supply

iCCU-C2 150 Watt Power Supply

The part number for ordering is iN2-150WPS-C.

This is the power supply used in conjunction with an iCCU-C2 and iN2-ICB-C. Download the cutsheet

iCCU-C2 C4 Cable Harness

iCCU-C2 C4 Cable Harness

The part number for ordering is iN2-C4-CABLE-C.

This cable is used to interface the iCCU-C2 to a 300 series traffic cabinet. Download the cutsheet

CCU-BRKT Mount

CCU-BRKT Mount

The part number for ordering this mount is CCU-BRKT.

This mount is designed to hold a CCU2EN, iCCU-S or iCCU-S2 type control unit and bolt to a rack channel with EIA universal spacing. Download the cutsheet

Adapter for mounting two iNS PBS' on a 2.9

Adapter for mounting two iNS PBS' on a 2.9" OD Pole

The part number for ordering is iNSDM-2.9-B

This adapter is for mounting two iNS iNavigator push button stations on a 2.9" OD pole (2.5" ID) so that they can use 9X12 or 9X15 signs and not touch. It comes in the standard color black. Download the cutsheet

Adapter for Mounting Two iNavigators on a 4 inch Pole

Adapter for Mounting Two iNavigators on a 4.5 OD Pole

The part number for ordering is iNSPA4X2-B.

This adapter is designed to offset two iNavigators with 9x12 or 9x15 signs on a 4.5" OD pole. This product is only offered in the color black. Download the cutsheet

iNS Fluted Mounting Adaptor

iNS Fluted Mounting Adaptor

The part number for ordering is iNSPA-B-FP.

This adapter is designed to allow an "iN" or "iNS" Navigator or PBF2C to be mounted directly on, or up to 20 degrees to either side of a flute. This product is only offered in the color black. Download the cutsheet

Push Button Station Conduit Mount

Push Button Station Conduit Mount

The part number for ordering is PBSCM.

This mount is designed to facilitate easy routing and connection of ½" diameter conduit to the bottom of the mount, prior to securing an iNS/iDS (or any other Polara model push button with the same form factor), to a wooden pole, or flat concrete or metal surface that does not allow internal wire routing to the button. Download the cutsheet

Pole Cap for iNavigator Push Button Station mounted to a 2.9 inch OD Pole

Pole Cap for iNavigator Push Button Station

The part number for ordering is iNS-WPC-B.

This pole cap attaches to an iNS iNavigator Push Button Frame and covers the top of a 2.9" OD stub pole used to mount iNavigators close to the start of a crosswalk. Download the cutsheet

Mounting Extender for iN & iNS Navigator

Mounting Extender for iN & iNS Navigator

The part numbers for ordering are iNS-EXT-06 & iNS-EXT-12.

This mounting extender is designed to mount an "iN" or "iNS" Navigator, PBF2, or PBF2C either 6" or 12" from a traffic pole in order to extend the unit closer to the crosswalk. Download the cutsheet

Polara iNS Angled Mounting Extender

Angled Mounting Extender for iN & iNS Navigator

The part numbers for ordering are iNS-EXTANG-06 & iNS-EXTANG-12..

This mounting extender is angled down and designed to reduce button mounting height of up to approximately 5". Download the cutsheet

Polara iNS Height Reducing Mounting Extender

Height Reducing Mounting Extender for iN & iNS Navigator

The part number for ordering is iNS-EXTHTRED

This mounting extender is curved down and designed to reduce/adjust button mounting height of up to 15". Download the cutsheet

Polara iNS Push Button Sign Backplate 9 X 12

iNS 9 X 12 Push Button Sign Backplate

The part number for ordering is PBFA9X12-X.

This sign back plate is designed to be attached to any iNavigator PBS or any Push Button Frame, for mounting a 9” x 12” crosswalk sign. To designate color in place of X use "B" for black, "G" for green and "Y" for yellow. Download the cutsheet

Polara iNS Push Button Sign Backplate 9 X 15

iNS 9 X 15 Push Button Sign Backplate

The part number for ordering is PBFA9X15-X

This sign back plate is designed to be attached to any iNavigator PBS or any Push Button Frame, for mounting a 9” x 15” crosswalk sign. To designate color in place of X use "B" for black, "G" for green and "Y" for yellow. Download the cutsheet

Polara iNS Bi-directional Button Assembly

iNS Bi-directional Button Assembly

The part number for ordering is 850-491-2.

If you need to field replace a R/L arrow button, this assembly is for a bi-direction application.

Polara iNS No Arrow Button Assembly

iNS No Arrow Button Assembly

The part number for ordering is 850-491-3.

If you need to field replace a R/L arrow button, this assembly is for a no-arrow application. A typical application is a scramble intersection.

Polara iNS R/L Arrow Button Assembly

iNS R/L Arrow Button Assembly

The part number for ordering is 850-491-1.

If you need to field replace a R/L arrow button, this assembly is for a bi-direction application.

Polara iNS Color Change Kit

iNS Color Change Kit

The part number for ordering is iNS/iDS-CCK-YY-RR.

This color change kit is a bundle of the required parts needed to change the Front Cover color on an iNavigator PBS. To designate color in place of X use "B" for black, "G" for green and "Y" for yellow. Download the cutsheet

Polara iNS Field Installable Replacement Speaker

iNS Field Installable Replacement Speaker

The part number for ordering is iNS-SPKR

This speaker is set up to allow easy field replacement of an iNavigator PBS speaker. Download the cutsheet

Polara iNS External Speaker for ES Option

iNS External Speaker for ES Option

The part number for ordering is 2WEXTSPKR.

This is an external horn style speaker that typically installs on a PED Head for the purpose of providing greater directed volume on large intersections, or beaconing on intersections. This external speaker is connected to a iNS Push Button Station (PBS) with the -ES option.

Polara iNS Matching Color Paint

iNS Matching Color Paint

The part number for ordering Yellow is 190-1056

You can purchase cans of spray paint in the colors that match Polara's black, green and yellow powder coat colors. Part numbers for ordering are as follows: 190-1054 for black, 190-1055 for green, 190-1056 for yellow.

Polara iNS Universal 90 Degree Adaptor

iNS Universal 90 Degree Adaptor

The part number for ordering is iNS-90DEGADPTR.

This adapter designed to mount all iNavigator models (iN & INS) & push button station models (PBF2 & PBF2C) to either the right or the left of a mounting extender. reduce/adjust button mounting height of up to 15". Finish is aluminum with black powdercoat.

Polara iNS 3-Wire Cable

iNS 3-Wire Cable

The part number for ordering is iN3-CABLE-12.

This is the cable that is used to connect the iPHCU3S to the iNS in 3-wire mode or iNS3 (3-wire only unit) iNavigator Push Button Station and comes in a 12, 25 and 50 foot lengths. Part numbers for ordering are iN3-CABLE-12 for 12', iN3-CABLE-25 for 25', iN3-CABLE-50 for 50'

iNS 2-Wire Installation onto Pole



iCCU-S2 Install TS1 Hard Wired



iCCU-S2 Install TS2 SDLC Hybrid



iCCU-S2 Install TS2 BIU



iNavigator Banding Straps Install



iNS 3-Wire Installation onto pole



iPHCU3S Install into Signal Head



"Signal Guy" Polara Systems Review



"Signal Guy" Polara iCCU Programming



Shelf-mount-control-unit-min-300x300

iCCU-S2 Shelf Mount Control Unit

The part number for ordering is iCCU-S2.

This iCCU-S2 central control unit is a universal control unit that can be used in any style traffic cabinet and replaces the iCCU-S. It is backwards compatible with the iCCU-S with just cable changes. Download the cutsheet

iCCU-C2 Card Rack/300 Series Control Unit

iCCU-C2 Card Rack/300 Series Control Unit

The part number for ordering is iCCU-C2.

This control unit is designed for use in 300 Series type Traffic Cabinets. It plugs into the detector rack and takes up two slots. Download the cut sheet

iPHCU3S Ped Head Control Unit for 3-Wire System

iPHCU3S Ped Head Control Unit for 3-Wire System

The part number for ordering is iPHCU3S



This is the Control Unit that mounts in the Pedestrian Signal Head (Ped Head), takes power from the 120 VAC power to the walk/don't walk light signals, and operates the Push Button Station via 3 wires that connect the Control Unit to the Push Button Station. Download the cutsheet

Polara PC App Dongle

PC App Dongle

The part number for ordering is iN-DGL

This Dongle is required for using a personal computer along with Polara's free PC APP to communicate with an iNS push button station or an iCCU. Your personal computer must have Windows 7 or higher. Download the cutsheet

iNS Set Up Box

iNS Set Up Box

The part number for ordering is iNS-SUB.

This Set Up Box is for powering an iNS3, or an iNS2 (as a 3 Wire), and also earlier iN Series (iN3 & iN2 as a 3 Wire) push button stations in 3 Wire Mode so they can be set up or programmed in the shop or at ones desk without being connected to a traffic cabinet or PED head. Download the cutsheet

iCCU-S2 Interconnect Board

iCCU-S2 Interconnect Board

The part number for ordering is iN2-ICB.



This Interconnect Board is required for landing of intersection/field button wires when an iCCU-S2 Control Unit is used. Download the cutsheet

iCCU-C2 Interconnect Board

iCCU-C2 Interconnect Board

The part number for ordering the interconnect board is iN2-ICB-C.



This Interconnect Board and Power Supply (purchased separately, PN: iN2-150WPS-C) is required for landing of intersection/field button wires when an iCCU-C2 Control Unit is used. The Power Supply connects to the Interconnect Board and provides the necessary additional power to operate the push button stations. Dowload the cutsheet

iCCU-S2 Hardware Kit for Cable Strain Relief

iCCU-S2 Hardware Kit for Cable Strain Relief

The part number for ordering is HK-035.



Provides strain relief for iCCU-S2 Cable(s), or if using 50PINADP adapter cable. Download the cutsheet

iCCU-S2 50 Pin 4-Cable Harness mating Adapter

iCCU-S2 50 Pin 4-Cable Harness mating Adapter

The part number for ordering is 50PINADP.



This adapter plugs into the 50-Pin cable harness from an iCCU-S and makes the same connections via the Cable A & C terminal location on iCCU-S2, allowing for a quick swap out of an iCCU-S to an iCCU-S2 without having to redo any of the wiring (if using just Cables 2 & 4). Download the cutsheet

iCCU-S2 Any Cabinet Cable Package

iCCU-S2 Any Cabinet Cable Package

The part number for ordering is ACCP.



This cable package supplies you with the cables and interconnect board needed to install an iCCU-S2 controller in any style cabinet. This style of installation requires each cable wire to be terminated to a screw terminal location in the cabinet. Download the cutsheet. Download the cutsheet

iCCU-S2 SDLC Cabinet Cable Package

iCCU-S2 SDLC Cabinet Cable Package

The part number for ordering is SDLCCP.



This cable package provides what is needed to install an iCCU-S2 as a full BIU installation, or a Hybrid SDLC installation. It includes Polara’s SDLC Y cable. Download the cutsheet

iCCU to ped head load switch connector cable

iCCU to Ped Head Load Switch Connector Cable

The part number for ordering this nine wire cable is CABLE-A.



This is a nine wire cable that connects the iCCU to the ped head load switches in a traffic cabinet to receive ped interval timing. Download the cutsheet

iCCU to EV/PR Connector Cable

iCCU to EV/PR Connector Cable

The part number for ordering this six wire cable is CABLE-B.



This is a six wire cable that connects the iCCU to the emergency vehichle preemption (EV/PR) inputs in a traffic cabinet. Download the cutsheet

iCCU to Logc Ground Connector Cable

iCCU to Logic Ground Connector Cable

The part number for ordering this six wire cable is CABLE-C.



This is a six wire cable that connects the iCCU to the ped inputs and logc ground in a traffic cabinet to place ped calls to the controller. Download the cutsheet

iCCU General Input Cable

iCCU General Purpose Input Cable

The part number for ordering this four wire cable is CABLE-D.



This is a four wire cable that connects to the iCCU and allows general purpose (GP) inputs to be received by the iCCU-S2 by connecting to outputs from the traffic cabinet controller. Download the cutsheet

BTN-PLC Cable

iCCU-S2 PLC to iN2-ICB Connector Cable

The part number for ordering is BTN-PLC-CABLE.



This is a two wire cable that supplies power and data to the iNavigator buttons in the field. Connects to iCCU-S2 Buttlon PLC location and the other end connects to the iN2-ICB (Interconnect Board). Download the cutsheet

iCCU-S2 Cable for Logic Ground (BIU Use)

iCCU-S2 Cable for Logic Ground (BIU Use)

The part number for ordering is CABLE-C-LG.



This is used when the iCCU-S2 is used as a full BIU device on the SDLC Bus. This cable has a discrete single white wire that must be connected to the cabinet's logic/signal ground (LOGIC GND. One of these cables ships with every iCCU-S2. Download the cutsheet

iCCU-S2 Standard SDLC Cable

iCCU-S2 Standard SDLC Cable

The part number for ordering is iN2-SDLC-CABLE.



This cable is a standard 6' long SDLC cable used with the iCCU-S2 when SDLC is used. Download the cutsheet

SDLC Y Cable

SDLC "Y" Cable

The part number for ordering is iN2-SDLC-YCABLE.



This is a custom SDLC cable for use when there are no extra/available SDLC connection points in an intersection traffic cabinet. It allows our Control Units to be able to tap into an existing SDLC connection. Download the cutsheet

iCCU-C2 150 Watt Power Supply

iCCU-C2 150 Watt Power Supply

The part number for ordering is iN2-150WPS-C.



This is the power supply used in conjunction with an iCCU-C2 and iN2-ICB-C. Download the cutsheet

iCCU-C2 C4 Cable Harness

iCCU-C2 C4 Cable Harness

The part number for ordering is iN2-C4-CABLE-C.



This cable is used to interface the iCCU-C2 to a 300 series traffic cabinet. Download the cutsheet

CCU-BRKT Mount

CCU-BRKT Mount

The part number for ordering this mount is CCU-BRKT.



This mount is designed to hold a CCU2EN, iCCU-S or iCCU-S2 type control unit and bolt to a rack channel with EIA universal spacing. Download the cutsheet

Adapter for mounting two iNS PBS' on a 2.9

Adapter for mounting two iNS PBS' on a 2.9" OD Pole

The part number for ordering is iNSDM-2.9-B



This adapter is for mounting two iNS iNavigator push button stations on a 2.9" OD pole (2.5" ID) so that they can use 9X12 or 9X15 signs and not touch. It comes in the standard color black. Download the cutsheet

Adapter for Mounting Two iNavigators on a 4 inch Pole

Adapter for Mounting Two iNavigators on a 4.5 OD Pole

The part number for ordering is iNSPA4X2-B.



This adapter is designed to offset two iNavigators with 9x12 or 9x15 signs on a 4.5" OD pole. This product is only offered in the color black. Download the cutsheet

iNS Fluted Mounting Adaptor

iNS Fluted Mounting Adaptor

The part number for ordering is iNSPA-B-FP.



This adapter is designed to allow an "iN" or "iNS" Navigator or PBF2C to be mounted directly on, or up to 20 degrees to either side of a flute. This product is only offered in the color black. Download the cutsheet

Push Button Station Conduit Mount

Push Button Station Conduit Mount

The part number for ordering is PBSCM.



This mount is designed to facilitate easy routing and connection of ½" diameter conduit to the bottom of the mount, prior to securing an iNS/iDS (or any other Polara model push button with the same form factor), to a wooden pole, or flat concrete or metal surface that does not allow internal wire routing to the button. Download the cutsheet

Pole Cap for iNavigator Push Button Station mounted to a 2.9 inch OD Pole

Pole Cap for iNavigator Push Button Station

The part number for ordering is iNS-WPC-B.



This pole cap attaches to an iNS iNavigator Push Button Frame and covers the top of a 2.9" OD stub pole used to mount iNavigators close to the start of a crosswalk. Download the cutsheet

Mounting Extender for iN & iNS Navigator

Mounting Extender for iN & iNS Navigator

The part numbers for ordering are iNS-EXT-06 & iNS-EXT-12.



This mounting extender is designed to mount an "iN" or "iNS" Navigator, PBF2, or PBF2C either 6" or 12" from a traffic pole in order to extend the unit closer to the crosswalk. Download the cutsheet

Polara iNS Angled Mounting Extender

Angled Mounting Extender for iN & iNS Navigator

The part numbers for ordering are iNS-EXTANG-06 & iNS-EXTANG-12..



This mounting extender is angled down and designed to reduce button mounting height of up to approximately 5". Download the cutsheet

Polara iNS Height Reducing Mounting Extender

Height Reducing Mounting Extender for iN & iNS Navigator

The part number for ordering is iNS-EXTHTRED



This mounting extender is curved down and designed to reduce/adjust button mounting height of up to 15". Download the cutsheet

Polara iNS Push Button Sign Backplate 9 X 12

iNS 9 X 12 Push Button Sign Backplate

The part number for ordering is PBFA9X12-X.



This sign back plate is designed to be attached to any iNavigator PBS or any Push Button Frame, for mounting a 9” x 12” crosswalk sign. To designate color in place of X use "B" for black, "G" for green and "Y" for yellow. Download the cutsheet

Polara iNS Push Button Sign Backplate 9 X 15

iNS 9 X 15 Push Button Sign Backplate

The part number for ordering is PBFA9X15-X



This sign back plate is designed to be attached to any iNavigator PBS or any Push Button Frame, for mounting a 9” x 15” crosswalk sign. To designate color in place of X use "B" for black, "G" for green and "Y" for yellow. Download the cutsheet

Polara iNS Bi-directional Button Assembly

iNS Bi-directional Button Assembly

The part number for ordering is 850-491-2.



If you need to field replace a R/L arrow button, this assembly is for a bi-direction application.

Polara iNS No Arrow Button Assembly

iNS No Arrow Button Assembly

The part number for ordering is 850-491-3.



If you need to field replace a R/L arrow button, this assembly is for a no-arrow application. A typical application is a scramble intersection.

Polara iNS R/L Arrow Button Assembly

iNS R/L Arrow Button Assembly

The part number for ordering is 850-491-1.



If you need to field replace a R/L arrow button, this assembly is for a bi-direction application.

iNS-CCK-combined-300x180

iNS Color Change Kit

The part number for ordering is iNS/iDS-CCK-YY-RR.



This color change kit is a bundle of the required parts needed to change the Front Cover color on an iNavigator PBS. To designate color in place of X use "B" for black, "G" for green and "Y" for yellow. Download the cutsheet

Polara iNS Field Installable Replacement Speaker

iNS Field Installable Replacement Speaker

The part number for ordering is iNS-SPKR



This speaker is set up to allow easy field replacement of an iNavigator PBS speaker. Download the cutsheet

Polara iNS External Speaker for ES Option

iNS External Speaker for ES Option

The part number for ordering is 2WEXTSPKR.



This is an external horn style speaker that typically installs on a PED Head for the purpose of providing greater directed volume on large intersections, or beaconing on intersections. This external speaker is connected to a iNS Push Button Station (PBS) with the -ES option.

Polara iNS Matching Color Paint

iNS Matching Color Paint

The part number for ordering Yellow is 190-1056



You can purchase cans of spray paint in the colors that match Polara's black, green and yellow powder coat colors. Part numbers for ordering are as follows: 190-1054 for black, 190-1055 for green, 190-1056 for yellow.

Polara iNS Universal 90 Degree Adaptor

iNS Universal 90 Degree Adaptor

The part number for ordering is iNS-90DEGADPTR.



This adapter designed to mount all iNavigator models (iN & INS) & push button station models (PBF2 & PBF2C) to either the right or the left of a mounting extender. reduce/adjust button mounting height of up to 15". Finish is aluminum with black powdercoat. Download the cutsheet

Polara iNS 3-Wire Cable

iNS 3-Wire Cable

The part number for ordering is iN3-CABLE-12.



This is the cable that is used to connect the iPHCU3S to the iNS in 3-wire mode or iNS3 (3-wire only unit) iNavigator Push Button Station and comes in a 12, 25 and 50 foot lengths. Part numbers for ordering are iN3-CABLE-12 for 12', iN3-CABLE-25 for 25', iN3-CABLE-50 for 50' Download the cutsheet

APS FAQs

What’s the difference between a 2- and 3-wire APS?

Broadly speaking, two-wire systems are designed for intersections where pedestrian signals and call buttons are already present, and three-wire systems are for intersections without them. A two-wire system installs in the traffic cabinet; a three-wire installs in the ped head. Learn more about Polara’s 2- versus 3-wire systems

What is the difference between the iDS and the iNS?

The iNS is our standard accessible crosswalk push button station. The iDS includes all of the quality and features of the iNS, plus it has iDetect, an intelligent radar motion-detection sensor for touchless activation.

What is the difference between the iDS2 and the iDS3 (or the iNS2 and iNS3)?

Polara’s APS comes in four models: the iDS2, iNS2, iDS3, and iNS3. The iDS2 and iNS2 can be installed to communicate with a control unit in the cabinet over 2 wires, or a control unit in the signal head over 3 wires (2-wire or 3-wire operation). The iDS3 and iNS3 are specifically for 3-wire installations, and cannot operate in 2-wire mode.

Can iDetect be used as a pedestrian detector for passive detection?

Although it was not developed for passive pedestrian detection, iDetect picks up pedestrian movements within its range.

Does the iDS support “Extended Pushbutton Press” features (2009 MUTCD §4E.13)?

Yes! The iDS can be configured to play an information message, increase volume on the selected crossing, and activate audio beaconing on an extended press of the button or an extended wave in front of the motion sensor.

Does the iNS support audible beaconing?

Yes! Polara’s iNS Accessible Pedestrian Signals (APS) support audible beaconing, which uses an additional speaker mounted at either end of the crosswalk to help pedestrians with blindness or limited vision properly orient themselves and cross an intersection directly and safely. Learn more about audible beaconing

Which products can communicate with "smart city" monitoring software/SNMP managers?

The 2-wire models of the iDS and iNS can be configured to send trap notifications via SNMP.

Is there a charge for having a custom message recorded for the iDS?

Polara records custom crossing messages for our customers without charge. Pre-installing custom audio on your unit may incur a fee; see your distributor for details.

What is the recording limit for custom messages, in seconds?

The length of the Walk interval is the primary limit for Walk messages. Informational messages should be kept to less than 60 seconds.

Does the iDS record how often the button is pressed so we can measure pedestrian volume?

The iDS does log push events, and those log files may be accessed with the Field Service App or networked devices.

Does the iDS support scramble or “Barnes Dance” intersections?

Yes. In a 2-wire system, all buttons would be assigned to the same phase. In a 3-wire system, the IDS can use Wireless Sync to synchronize all of the crosswalk buttons to the same phase; a single 2-conductor cable is run to one button to place calls into the cabinet if needed.

Can the iDS be mounted upside down to fit into awkward spaces?

No. Mounting the iDS upside down can allow moisture to collect inside the unit, and will void the warranty. In difficult installation locations, consider using one of our extended mounts, adapters, and mounting brackets.

What size conductors are required for the iDS 2-wire system?

Engineering recommendations is to use #14 for runs less than 300’, and #12 for run lengths greater than 300’.

Why should I upgrade to the iDS from my current iNavigators?

Besides our continual release of incremental improvements to make the iNS series the most reliable and feature-rich APS on the market, the iNS/iDS includes Bluetooth 5.0, which allows for the use of PedApp, Bluetooth Sync, and faster programming speeds. The iNS also improved transient protection over the iNavigator.
